CSOLOGO1 CSOLOGO2 SHARP, The SHARC-II Polarimeter, opens its eyes. CITLOGO


The new polarimeter, SHARP, completed their first experiments in early August 2005.
Please visit the SHARP web page  for complete information of the project.

SHARP diagram
Figure 1. The SHARP uses the SHARCII camera for the detectors.  The module of the SHARP will split the incident beam, coming from the left, into two orthogonally polarized beams fall onto the SHARCII detectors, shown in the right of the diagram above.  (Novak et al. 2004)



sharp_grid1

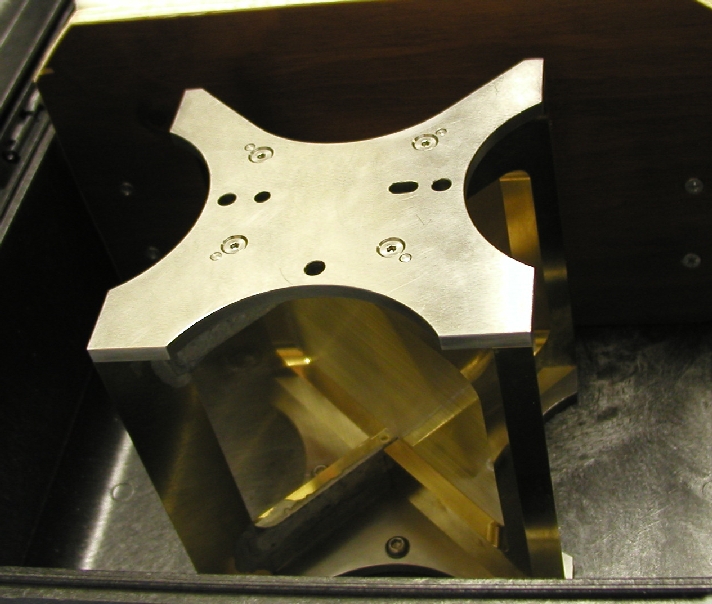

Figure 2. The cross grid used in the SHARP optics (the component A in the figure 1).


sharp_box4_1

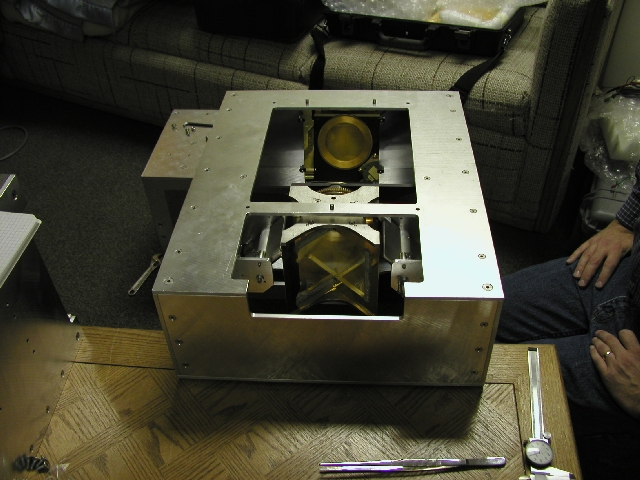

Figure 3. The cross grid is installed in one of the optics boxes of the SHARP.


SHARP_1

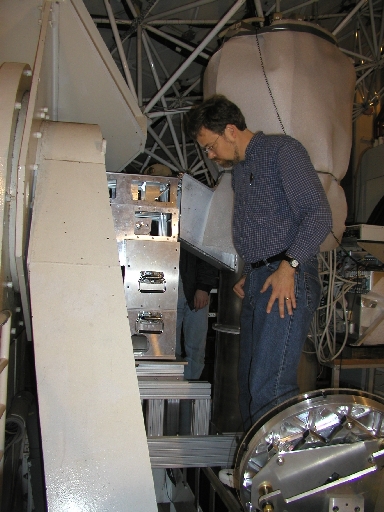

Figure 4. Giles Novak (front) and Larry Kirby (back) start testing the SHARP optics boxes installed in front of the SHARCII.


sharp_2

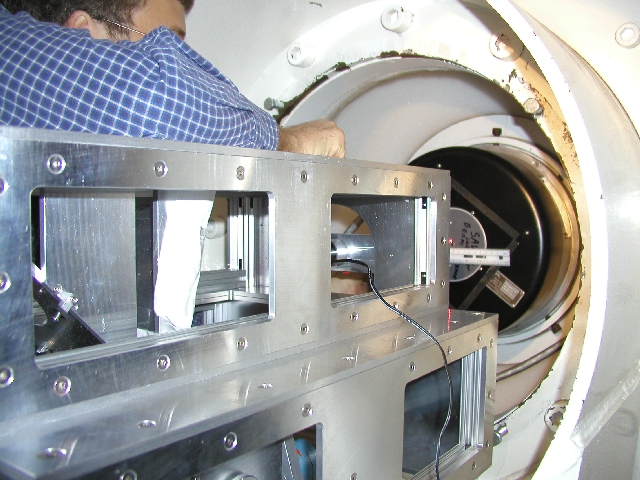

Figure 5. Optical alignment is being done.
